Tesla Plug-n-Play BMS Interface Board
$25.00
This is not the complete kit
– only the board that goes on the Tesla battery module. It is normally a spare part for our Pathfinder BMS kits, and will also work with a JBD-SP10S009 BMS(obsolete).
If you dont have one of these, you probably want Tesla boards with universal screw terminals.
This board replaces the DAQ board on used Tesla Model S/X Battery Modules.
It simplifies the task of connecting a Pathfinder BMS to the Tesla battery module.

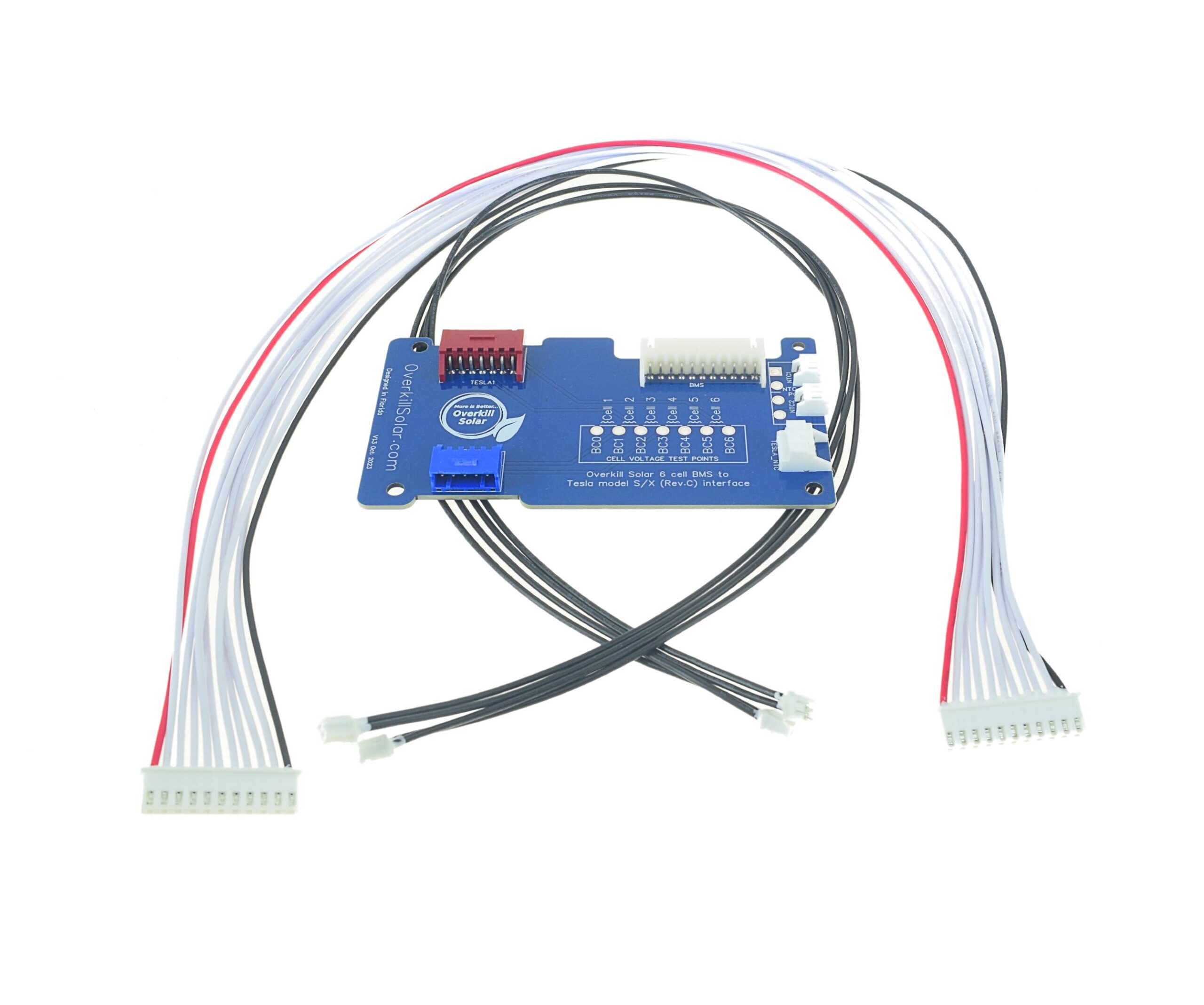

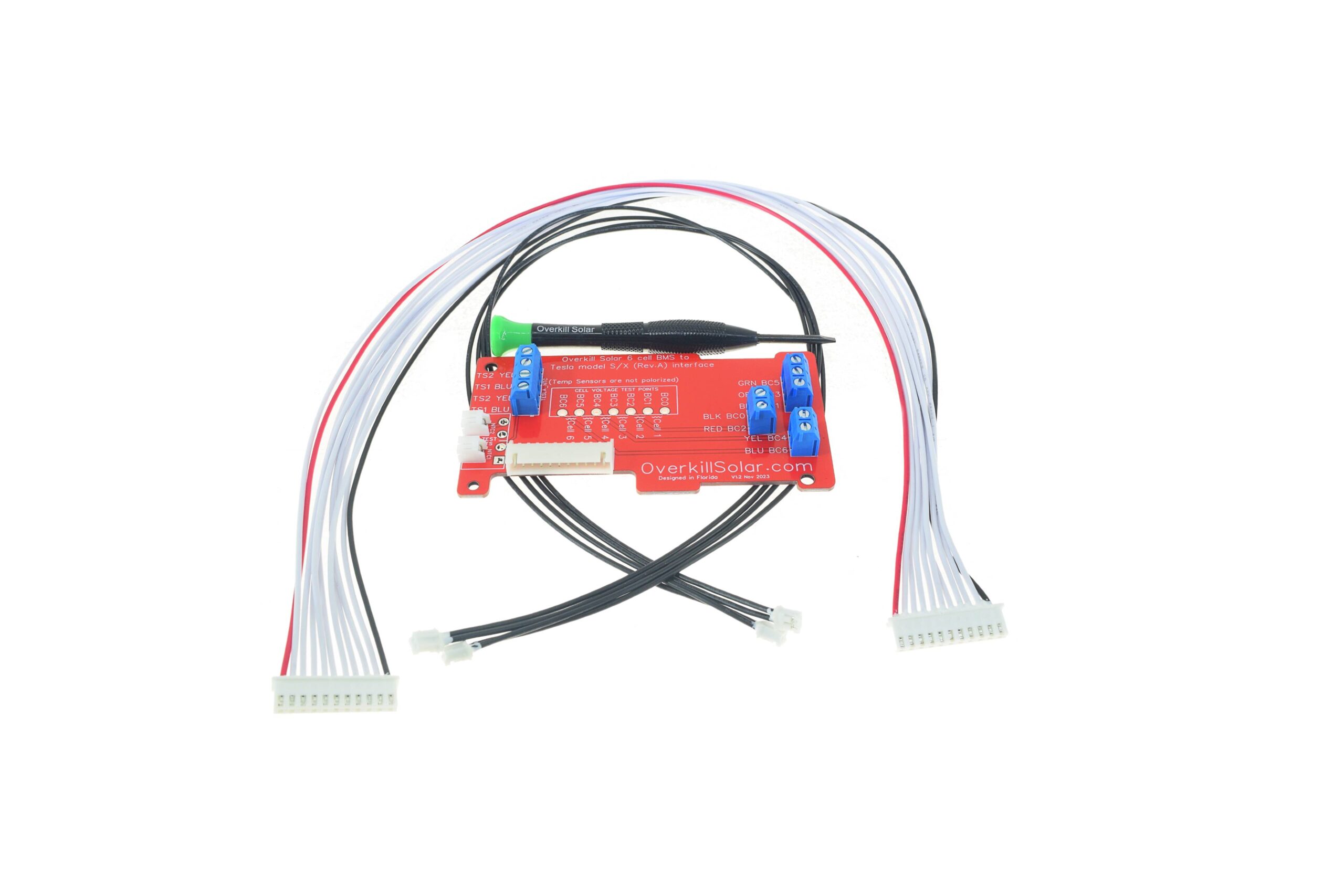

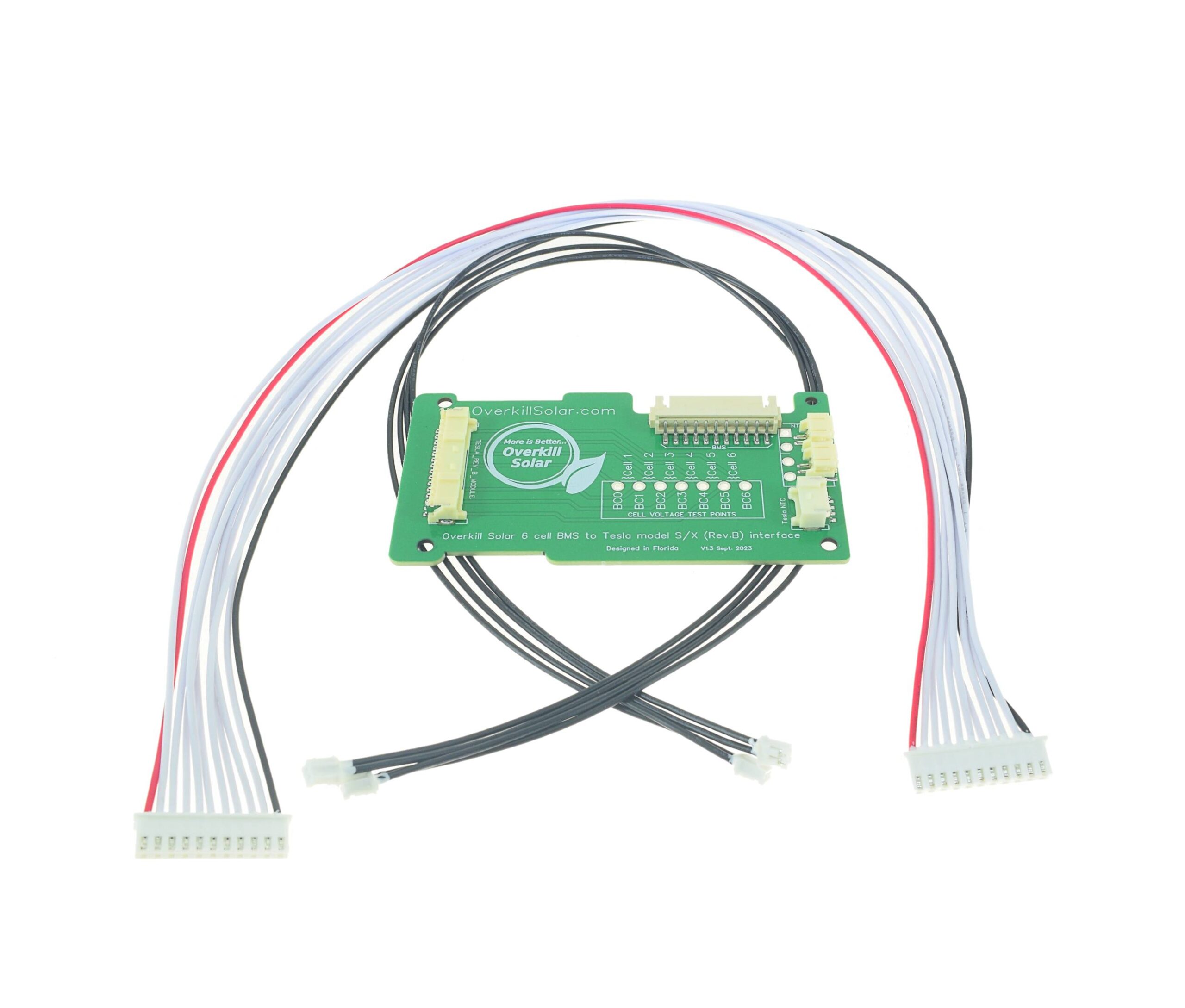

Includes:
- Interface board for one Rev A,B, or C Tesla battery module
- Plug-n-Play balance wire set
- 2 Temperature sensor wire sets
These boards can be used with a Pathfinder BMS with a 6 or 12 cell Terminal board with the plug-n-play connector.
One of these boards is included with each Pathfinder BMS Tesla kit. If you need to exchange a board for a different Tesla module revision, you can buy one of these and return the other board, or contact Support@OverkillSolar.com to set up a free exchange.
Do you also need a BMS? Check out our plug-&-play BMS kits for Tesla modules!
Are you looking for a Tesla interface board with universal screw terminals?
Installation instructions:
Revision A Instructions PDF
Revision B Instructions PDF
Revision C Instructions PDF
Additional information
| Weight | .25 lbs |
|---|---|
| Dimensions | 6 × 3 × .5 in |
| Tesla Module Revision: (Choose Rev.A, Rev.B, or Rev.C - Must match your battery- only for Tesla Modules) | Rev.A, Rev.B, Rev.C |
| SKU | |
| Product ID | 9026140 |
